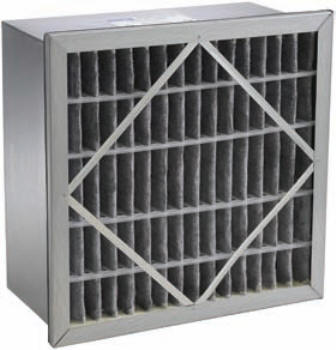

Activated carbon filter, specifications.
Applications - coarse particle and industrial gas phase odour filtration
Type - pleated panel filter
Frame - zincalume steel or aluminum
Filter media - activated carbon composite media
Grids - aluminum mesh, galvanized steel mesh
EN 779 Class - G3－G4
Average arrestance - 80%－94%（ASHRAE 52.1-1992）
MERV - MERV 5－8（ASHRAE 52.2-1999）
Benzene absorption - ≥800 mg/g（particles），≥200 mg/g（fibers）
Carbon content - ≥50%
Final pressure drop - (recommended) 250Pa（fibers）, 600Pa（particles）
Max. air flow rate - 125% of nominal air flow rate
Max. operating temperature - 60℃
Max. relative humidity - 80%
Type | Media | Dimensions | Filtering surface (m2) | Rated air flow (m3/h) | Initial pressure drop(Pa) | Length (mm) | Height (mm) | Depth (mm) | AC-KL | Activated Carbon Particles | 500 | 500 | 25 | 0.25 | 1000 | 150 | 500 | 500 | 45 | 0.25 | 1500 | 250 | 600 | 600 | 45 | 0.36 | 2000 | 250 | AC-XW | Activated Carbon Fiber | 500 | 500 | 25 | 0.25 | 1000 | 120 | 500 | 500 | 45 | 0.70 | 2000 | 90 | 500 | 500 | 90 | 1.44 | 3000 | 90 | 600 | 600 | 25 | 0.36 | 1000 | 80 | 600 | 600 | 45 | 1.10 | 2500 | 90 | 600 | 600 | 90 | 2.20 | 3500 | 90
|
|
|
